Description

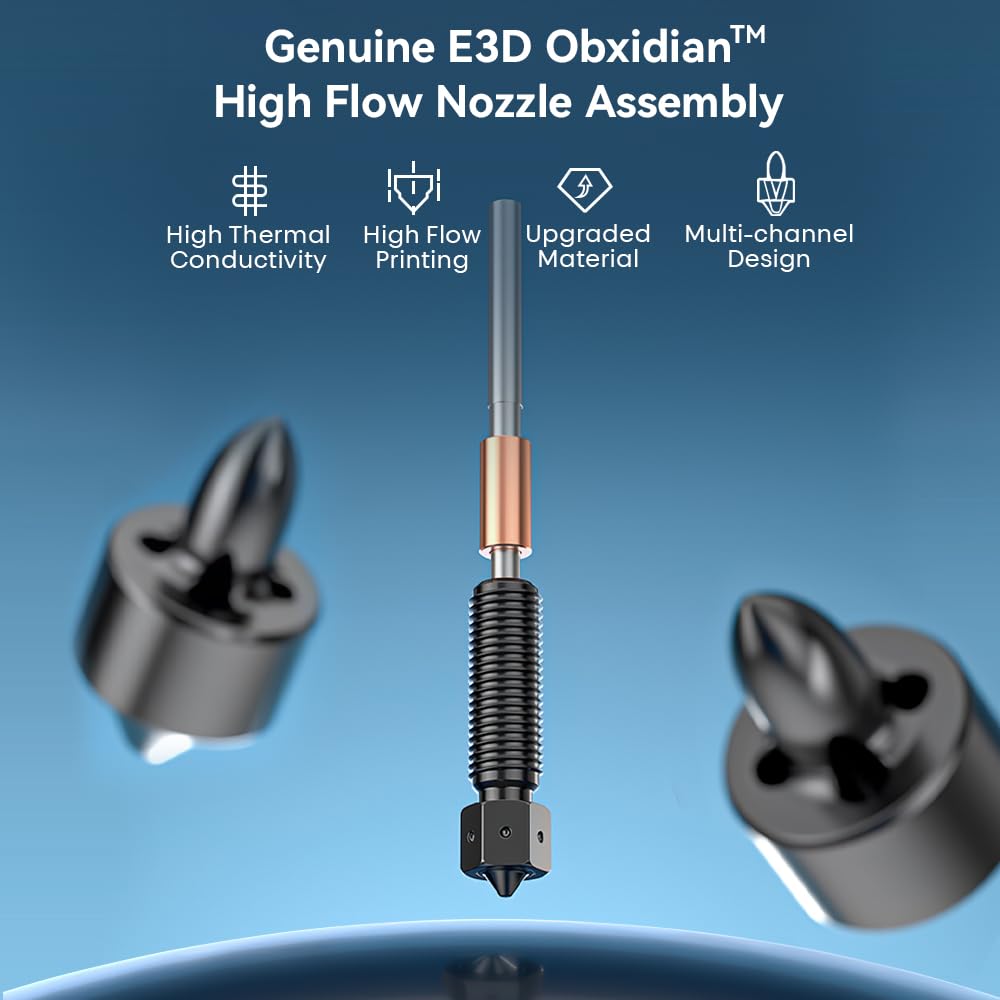

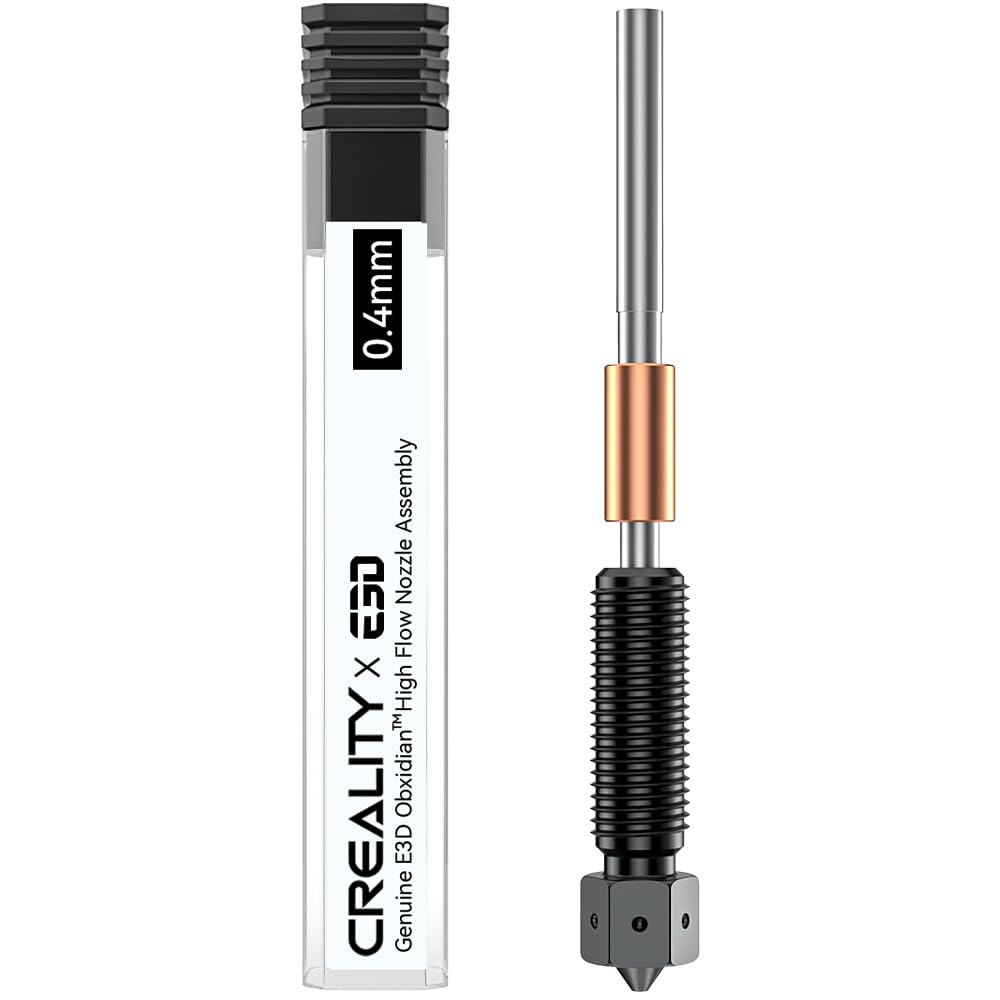

The Creality E3D Obsidian high-flow nozzle assembly combines a nozzle and heatbreak in an integrated replacement component. Match the printer generation and nozzle assembly before ordering.
Key details

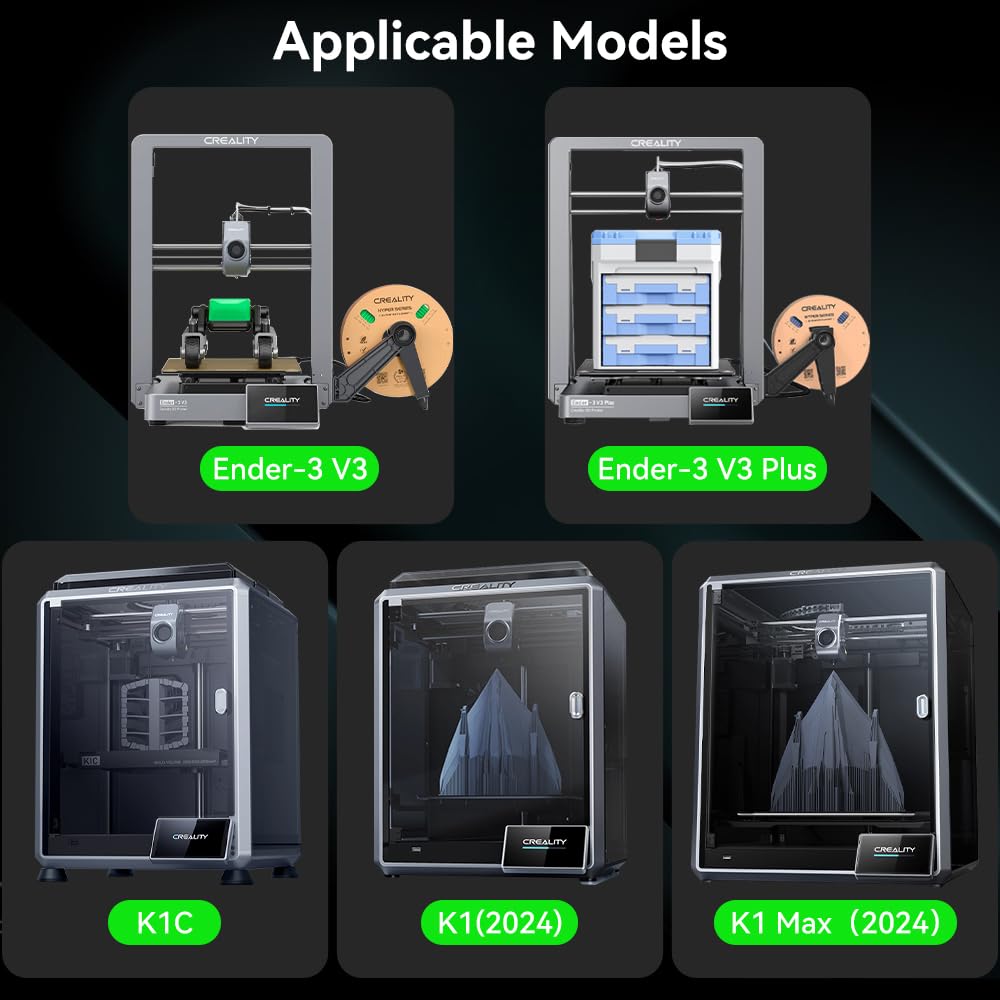

- Compatible models: K1 (2024), K1 Max (2024), K1C, Ender-3 V3 and Ender-3 V3 Plus.
- Integrated nozzle and heatbreak for replacement and maintenance.
- Earlier K1 and K1 Max hotend versions may require different parts.

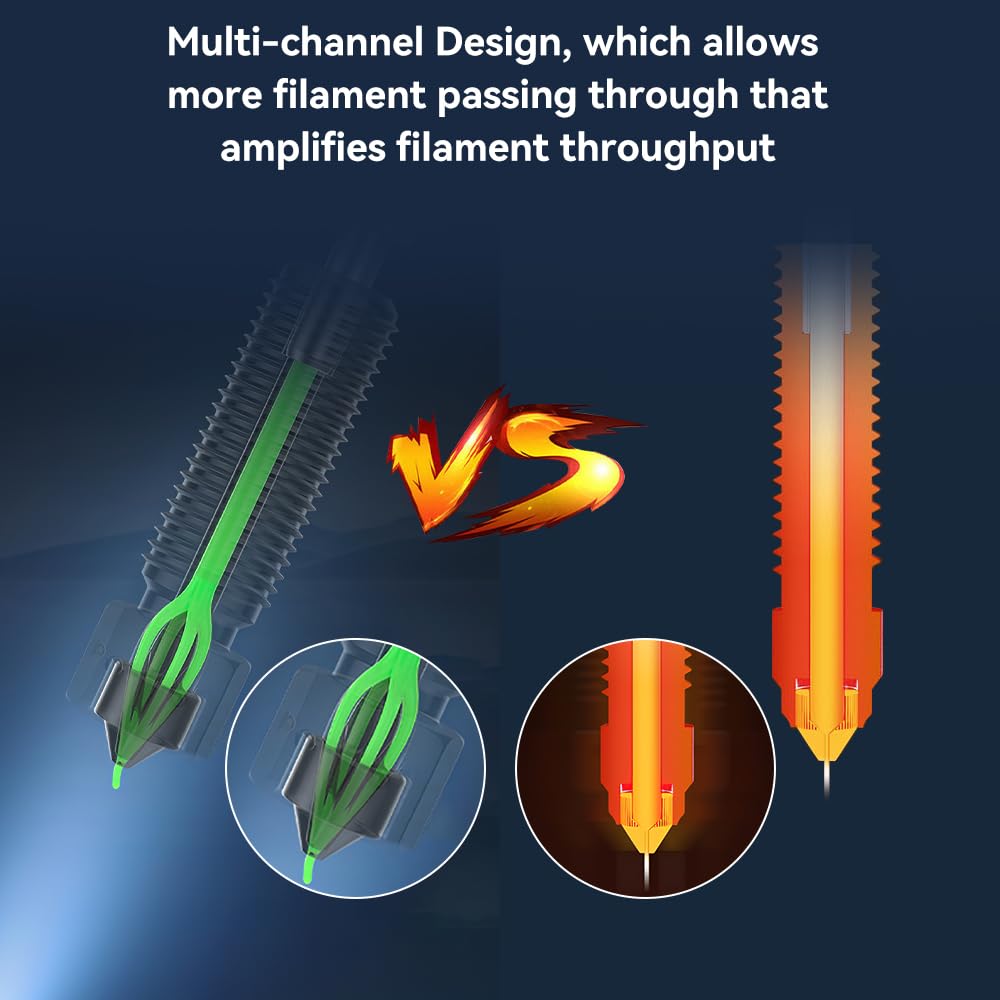

- Innovative Design: Comparison to common nozzles, the Ender 3 V3 nozzle is adopted a multi-channel feature, which allows more filament passing through that amplifying filament throughput.

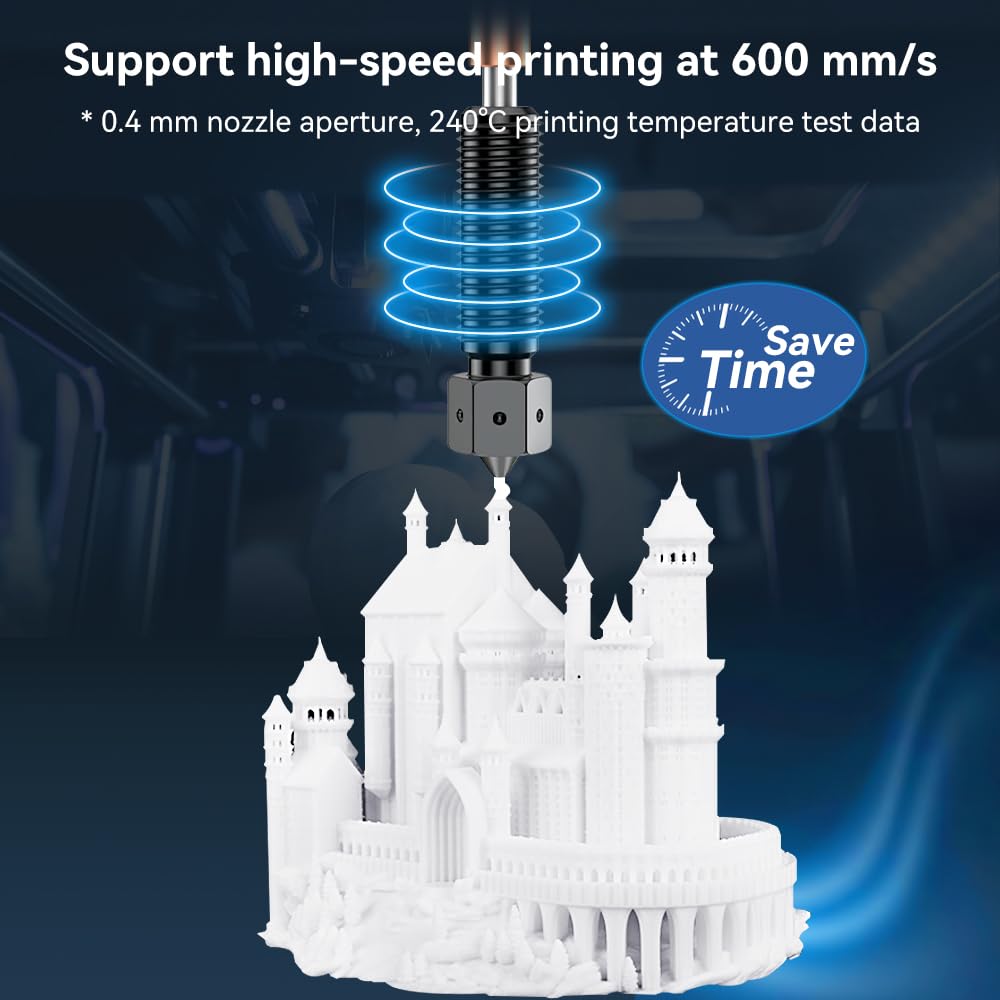

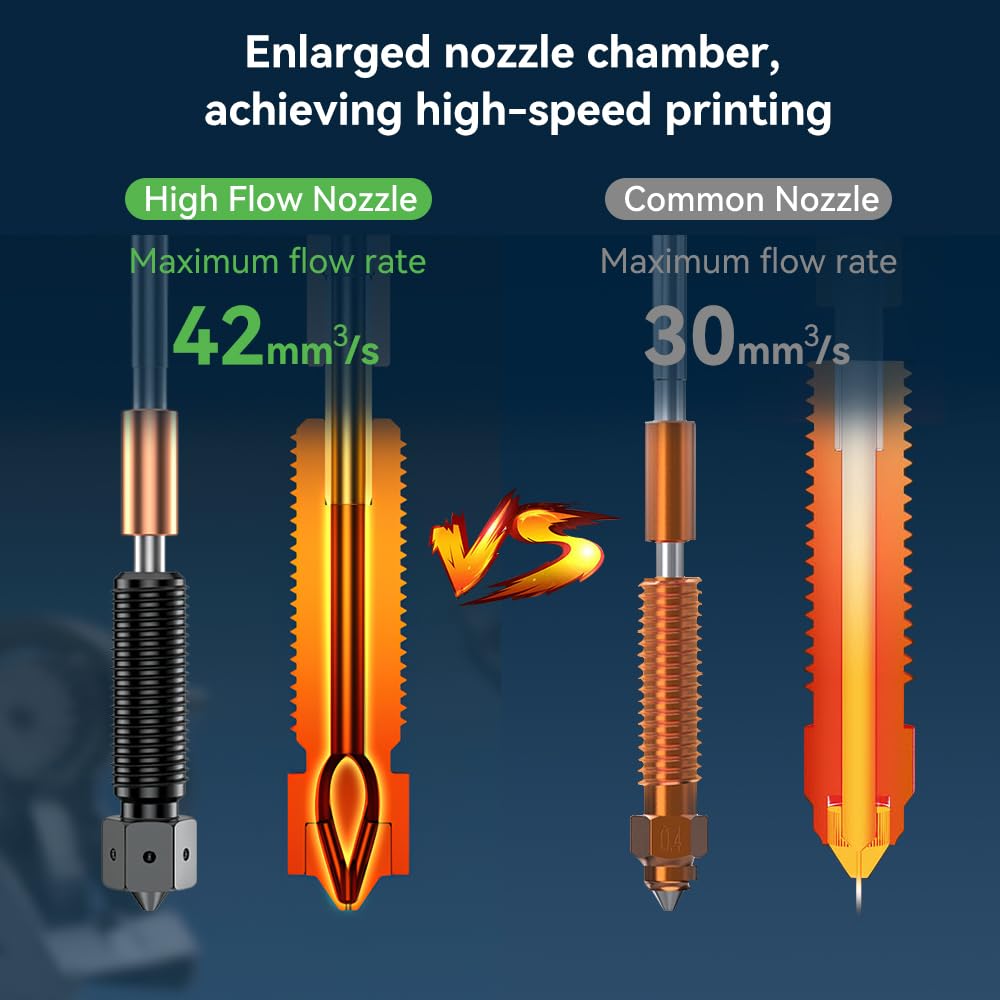

- High-Flow Printing: Enlarged nozzle chamber, achieving a maximum flow rate of up to 42 mm3/s, and supporting high-speed printing at 600 mm/s.

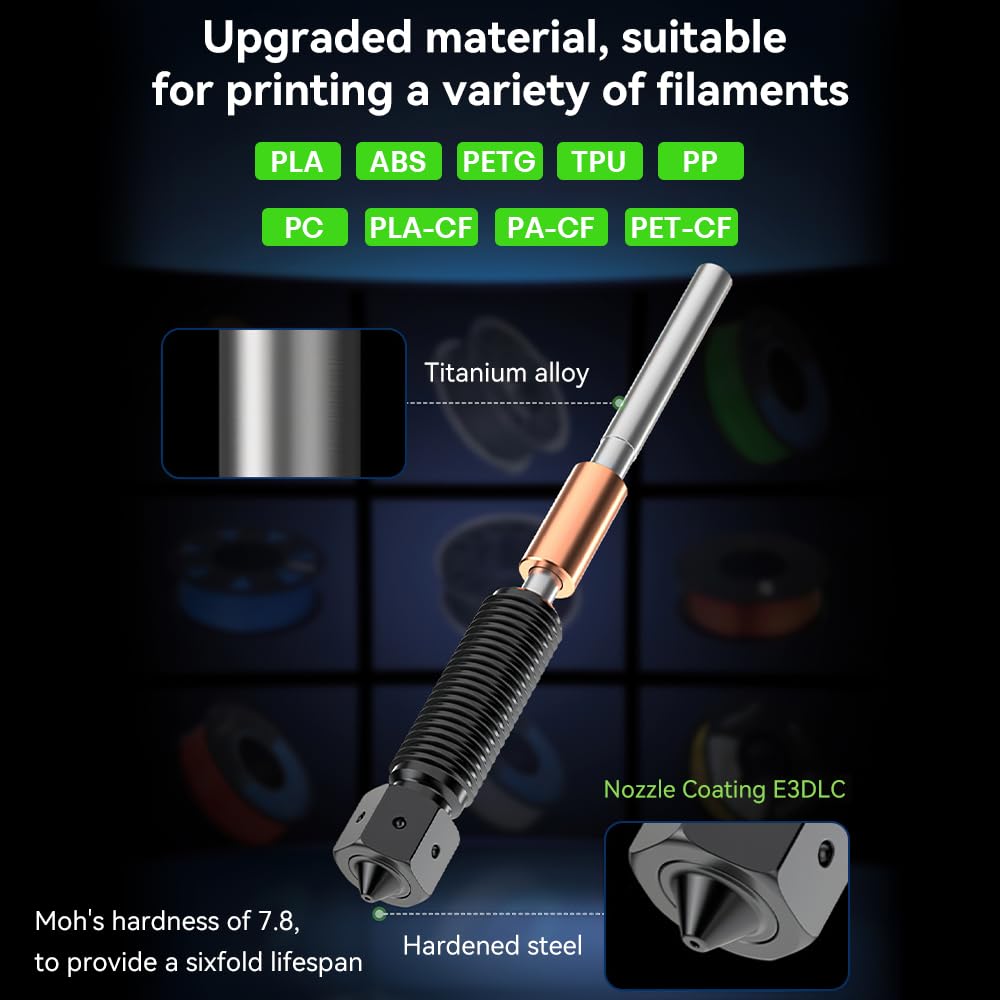

- Upgraded Material: The heat break is made of titanium alloy, which reduces heat conduction. Ender 3 V3 Plus nozzle is composed of copper alloy and hardened steel with a Moh's hardness of 7.8 and is coated with E3DLC to provide a sixfold lifespan.
- Integrated Design: K1 Max nozzle 0.4mm adopts an integrated design; the joints are tightly coupled, effectively preventing material leakage. Meanwhile, it greatly reduces the possibility of clogging of consumables and improves printing stability.
- Compatible Models: Genuine E3D Obxidian High Flow Nozzle Assembly is compatible with K1(2024), K1 Max(2024), K1C, Ender-3 V3 and Ender-3 V3 Plus. Use with these 3D Printers for easy high-speed printing. The nozzle and heat break adopt an all-metal integrated design, facilitating quick disassembly and convenient replacement.
