Description

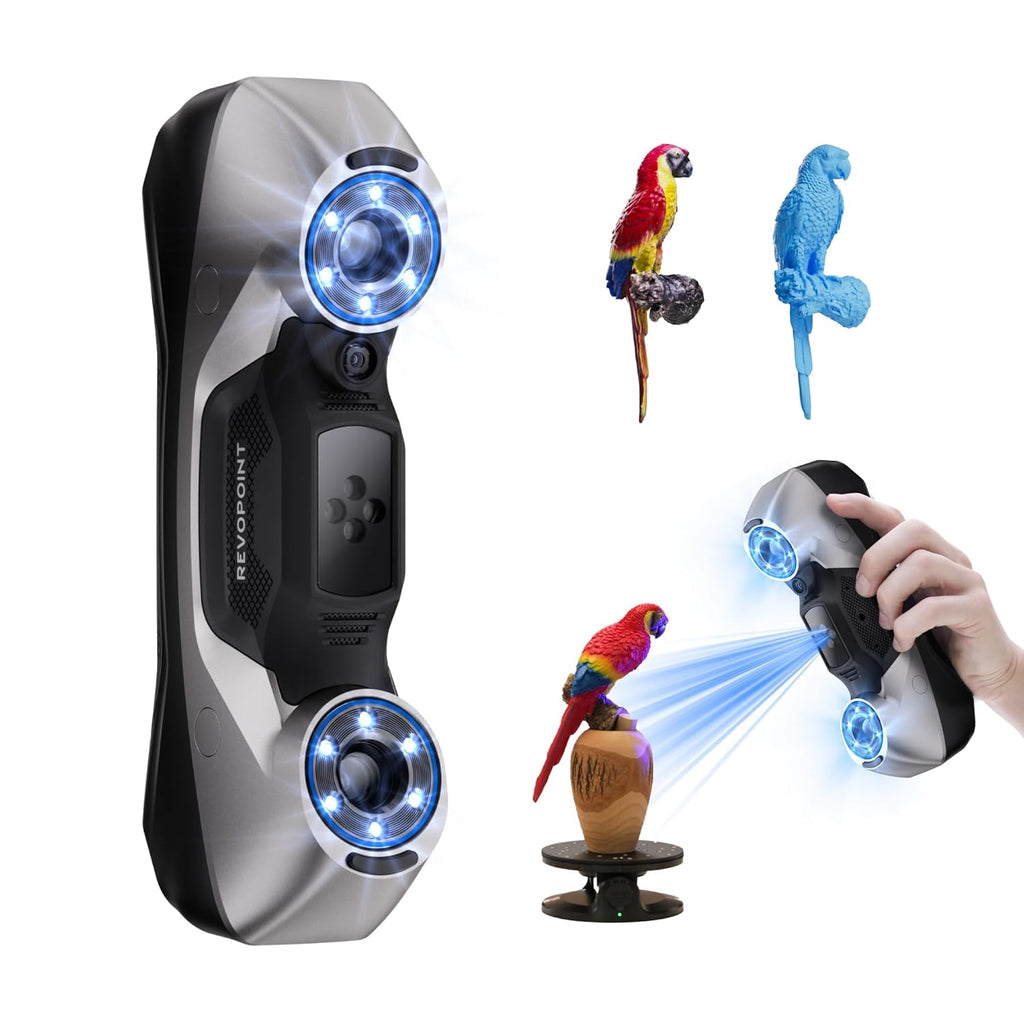

Choose a Revopoint MetroY or MetroY Pro scanner for blue-laser 3D capture. Wireless scanner-to-PC connection and live scan streaming support flexible capture and review.
Key details

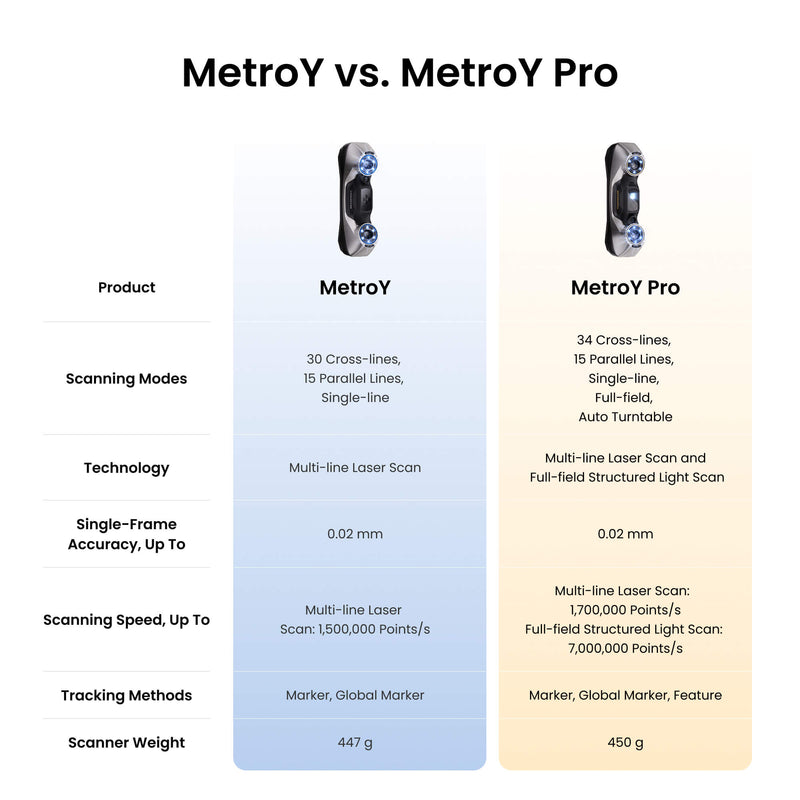

- MetroY provides crossed, parallel and single-line laser modes.
- MetroY Pro adds full-field structured-light and automated turntable modes.
- Check computer requirements; paid CAD or measurement licences are included only in the named bundles.

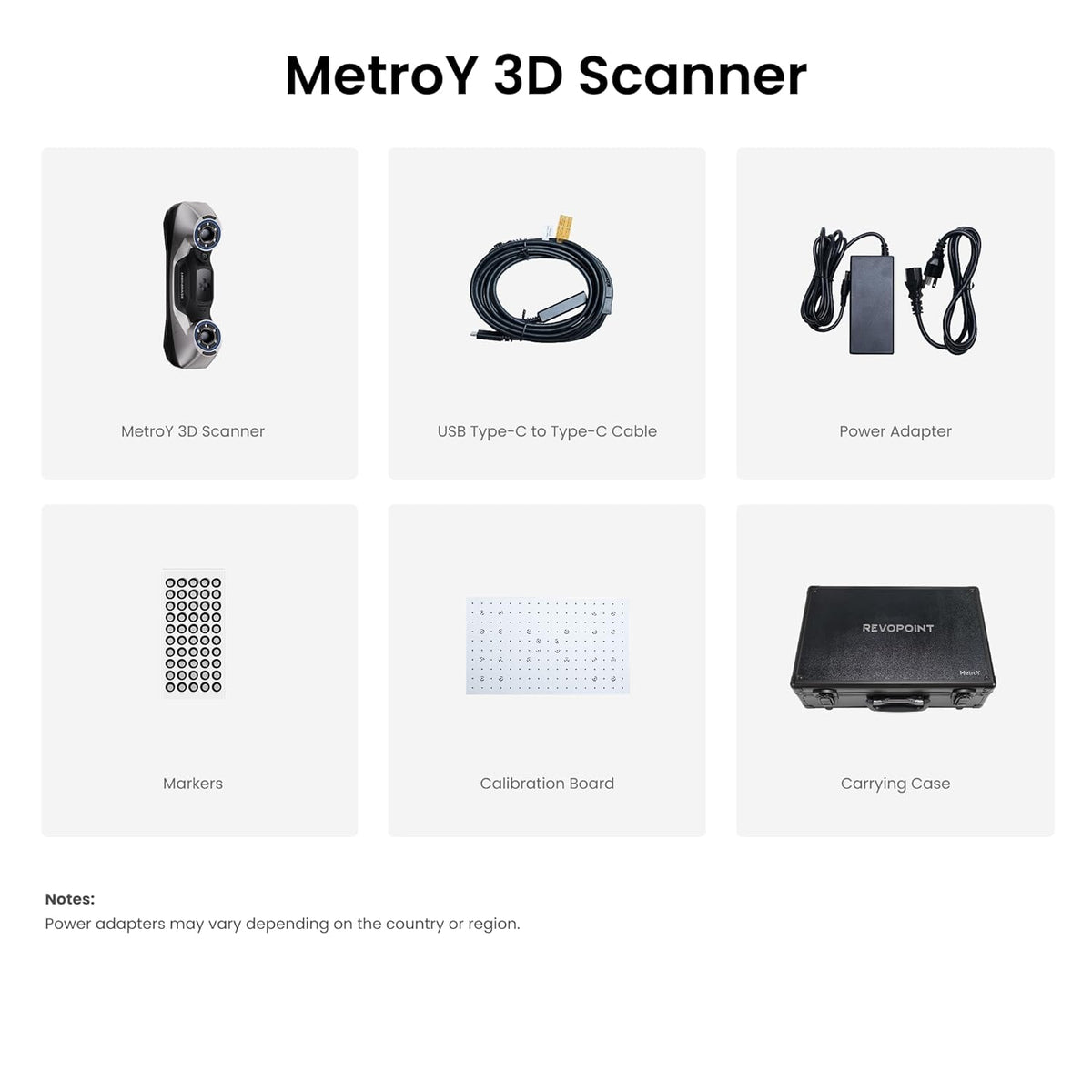

MetroY：

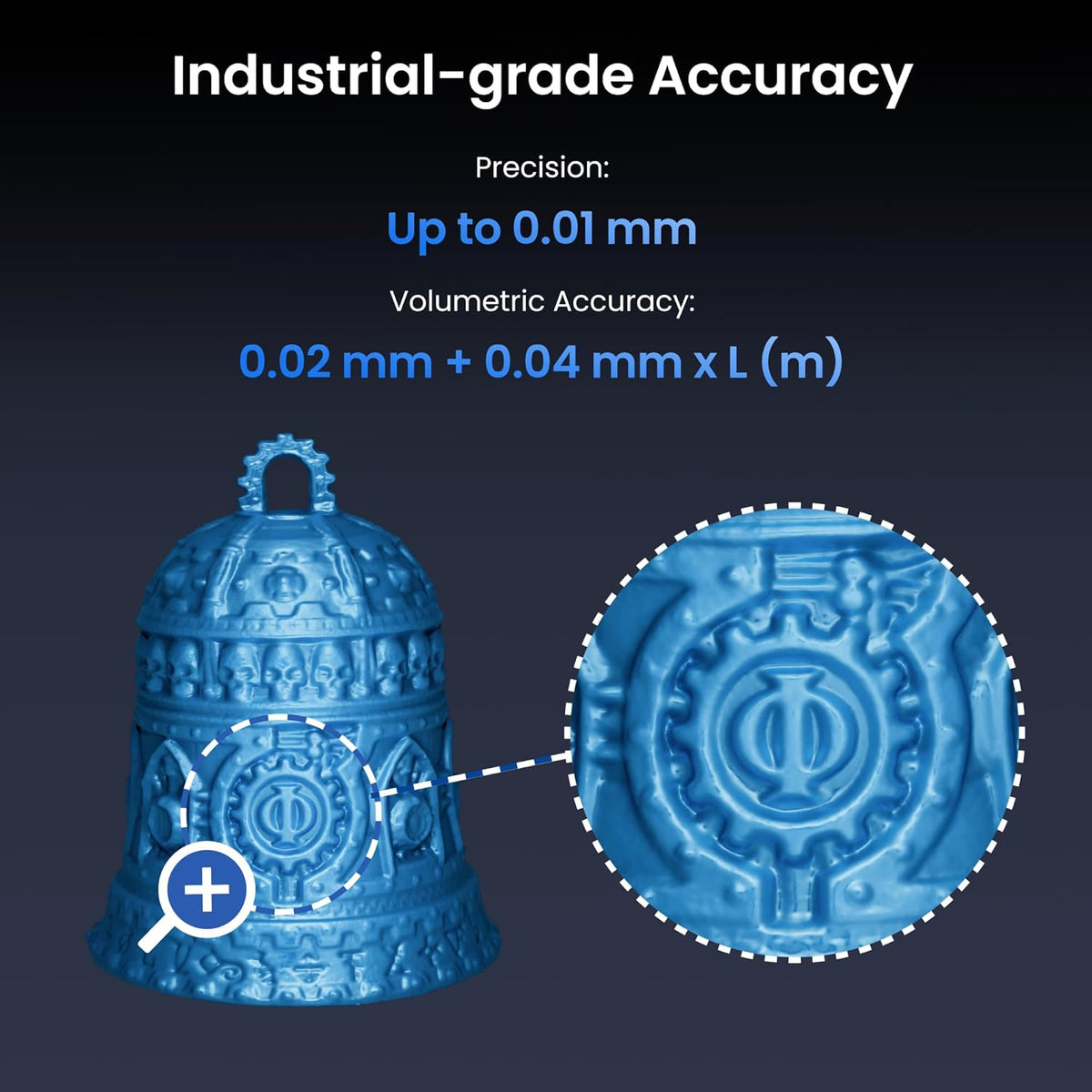

⦁ Industrial-Grade Accuracy: Capture every detail flawlessly with MetroY's advanced blue lasers, offering precision of up to 0.01 mm, accuracy of up to 0.02 mm, and volumetric accuracy of up to 0.02 mm + 0.04 mm x L(m). It ensures accurate, reliable results for reverse engineering, metrology, and 3D printing.

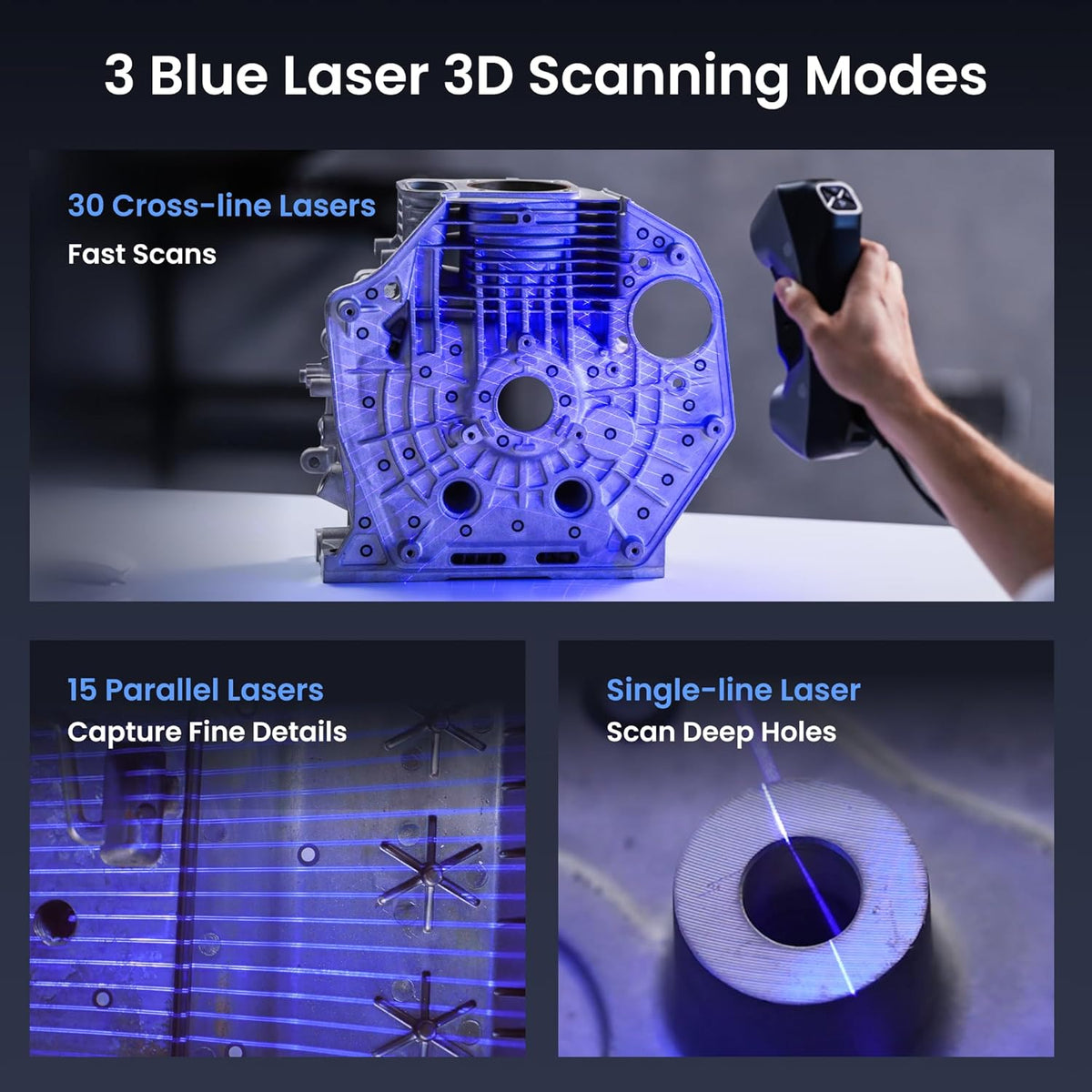

⦁ Three Scanning Modes: Efficiently scan complex geometry with 30 cross laser lines for quickly capturing surfaces, 15 parallel laser lines for detailed scanning, and a single-line mode for deep hole capture.

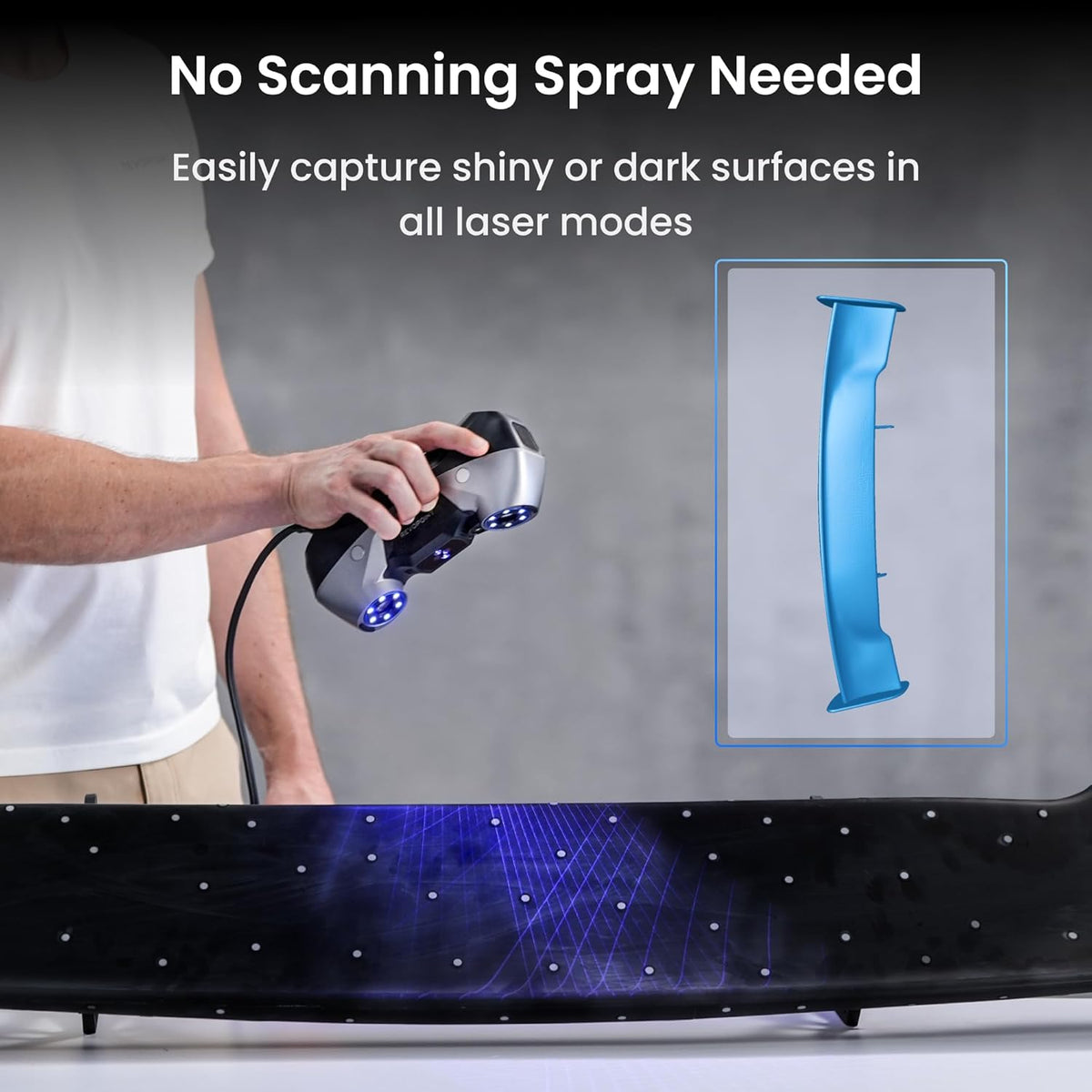

⦁ Fast Scans, No Scanning Spray Needed: Capture shiny and dark surfaces with ease, no scanning spray needed in any mode. Achieve high-efficiency results with scanning speeds of up to 1,500,000 points per second.

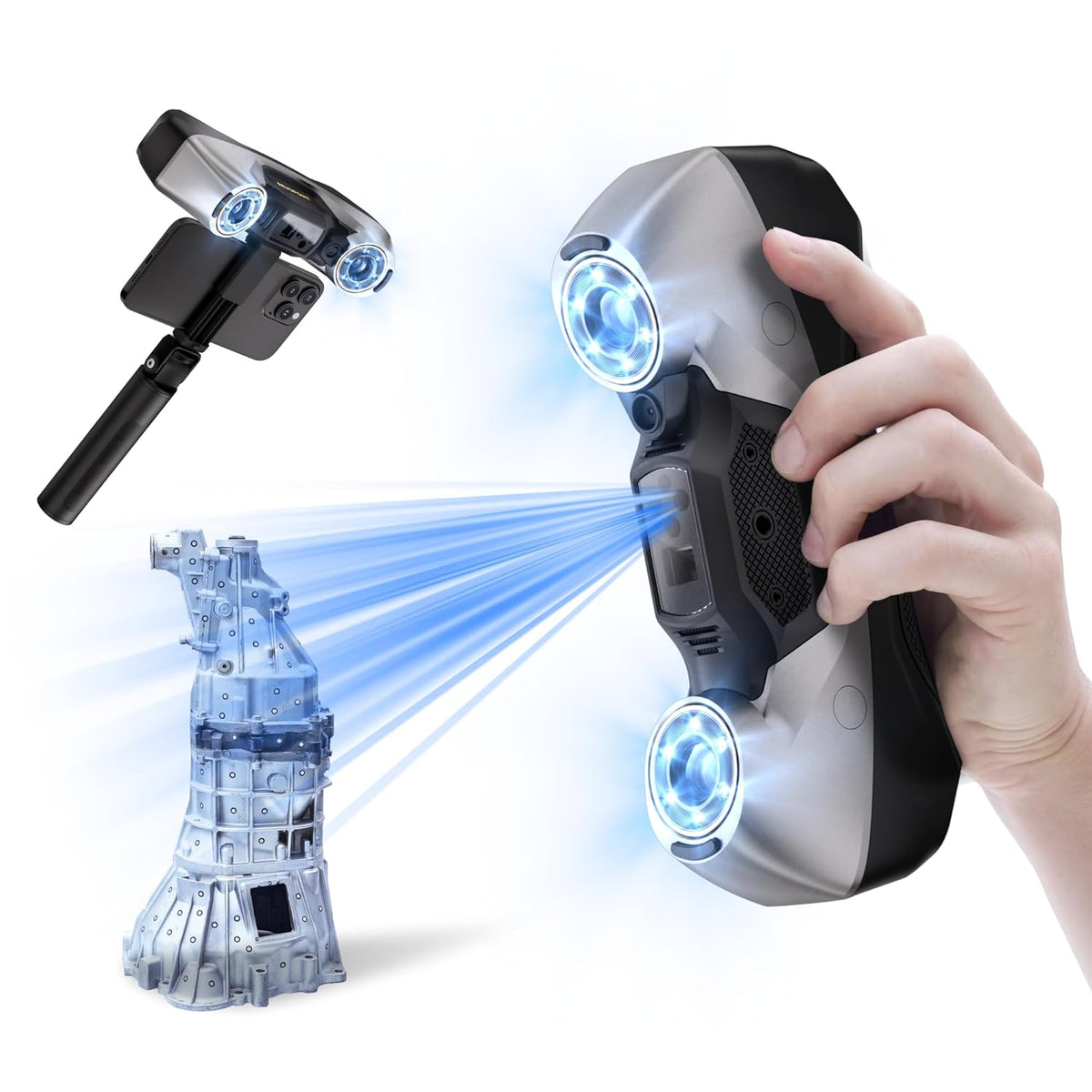

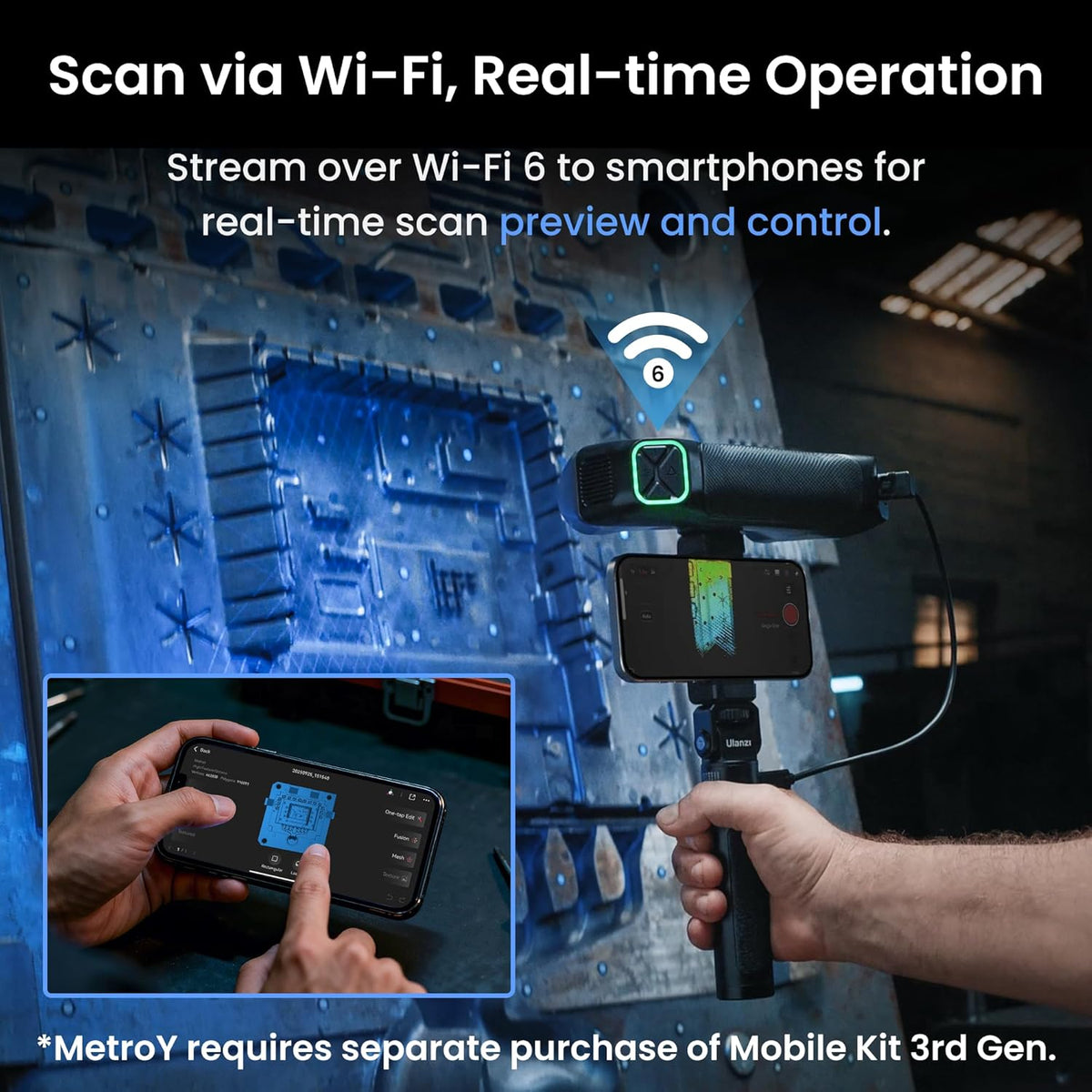

⦁ Wi-Fi 6 & Real-Time Streaming: Fast Wi-Fi 6 enables wireless scanner-to-PC connections, removing cables for more flexible scanning. Stream scans from your PC and control them live on your phone or other screens for easier movement and scan monitoring.

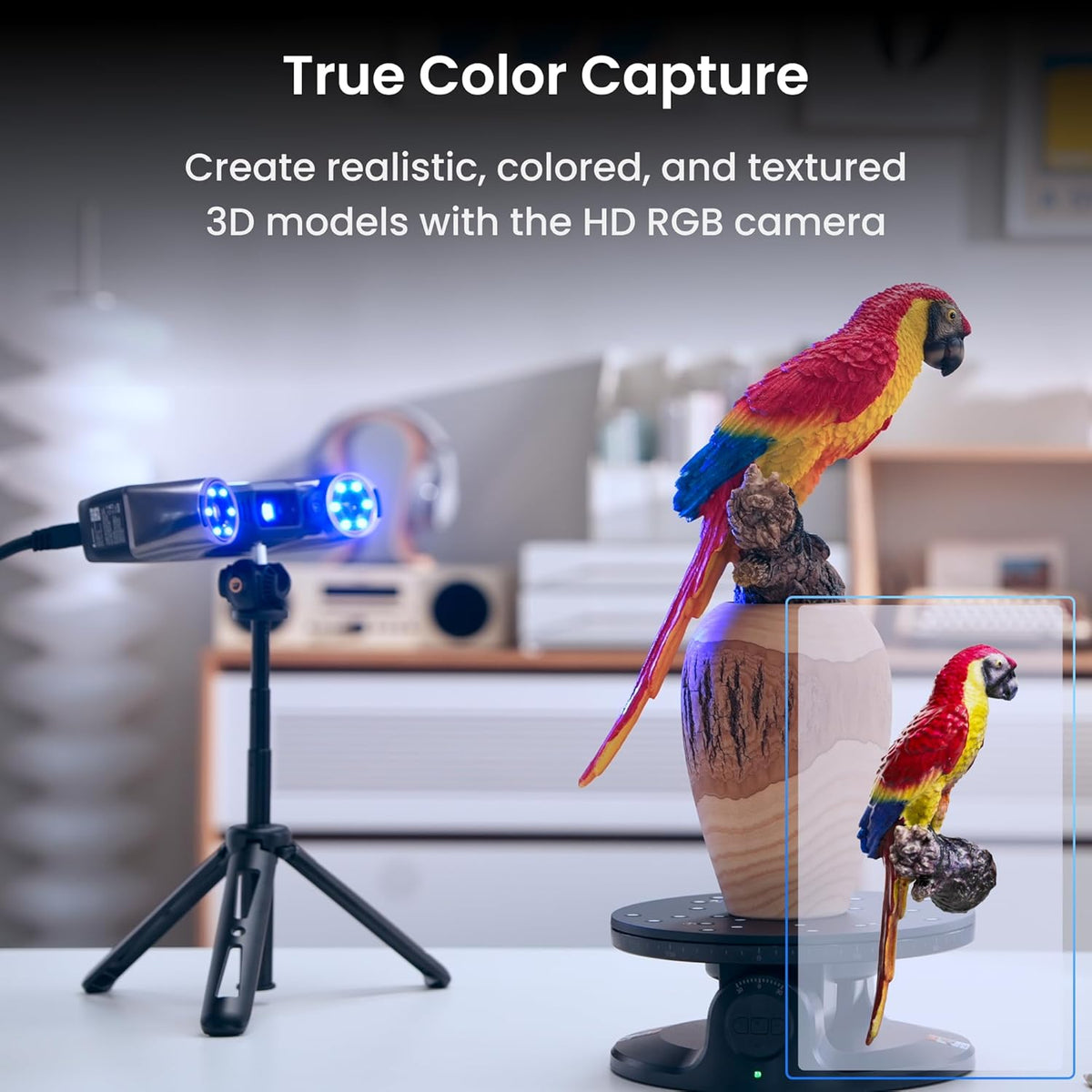

⦁ Ultra-Realistic Texture Mapping: The high-resolution RGB camera captures surface colors and textures from multiple angles, automatically aligning them with 3D models to deliver millimeter-level texture accuracy and precise colour detail.
⦁ High-Precision Calibration Board: The high-precision lithography calibration board offers 10-micron accuracy, enabling easy calibration via Revo Metro software to ensure consistent measurement accuracy and long-term system stability.
⦁ Professional Software: Simplify scanning, meshing, and editing with Revo Metro's intuitive tools to process and refine your scan. With one-click export, seamlessly transfer scans to Revo Measure or Revo Design for measurement and reverse engineering. The software also integrates effortlessly with Quicksurface, Geomagic Control, and other professional platforms. Windows and macOS versions are available; check the current hardware requirements for the selected model.

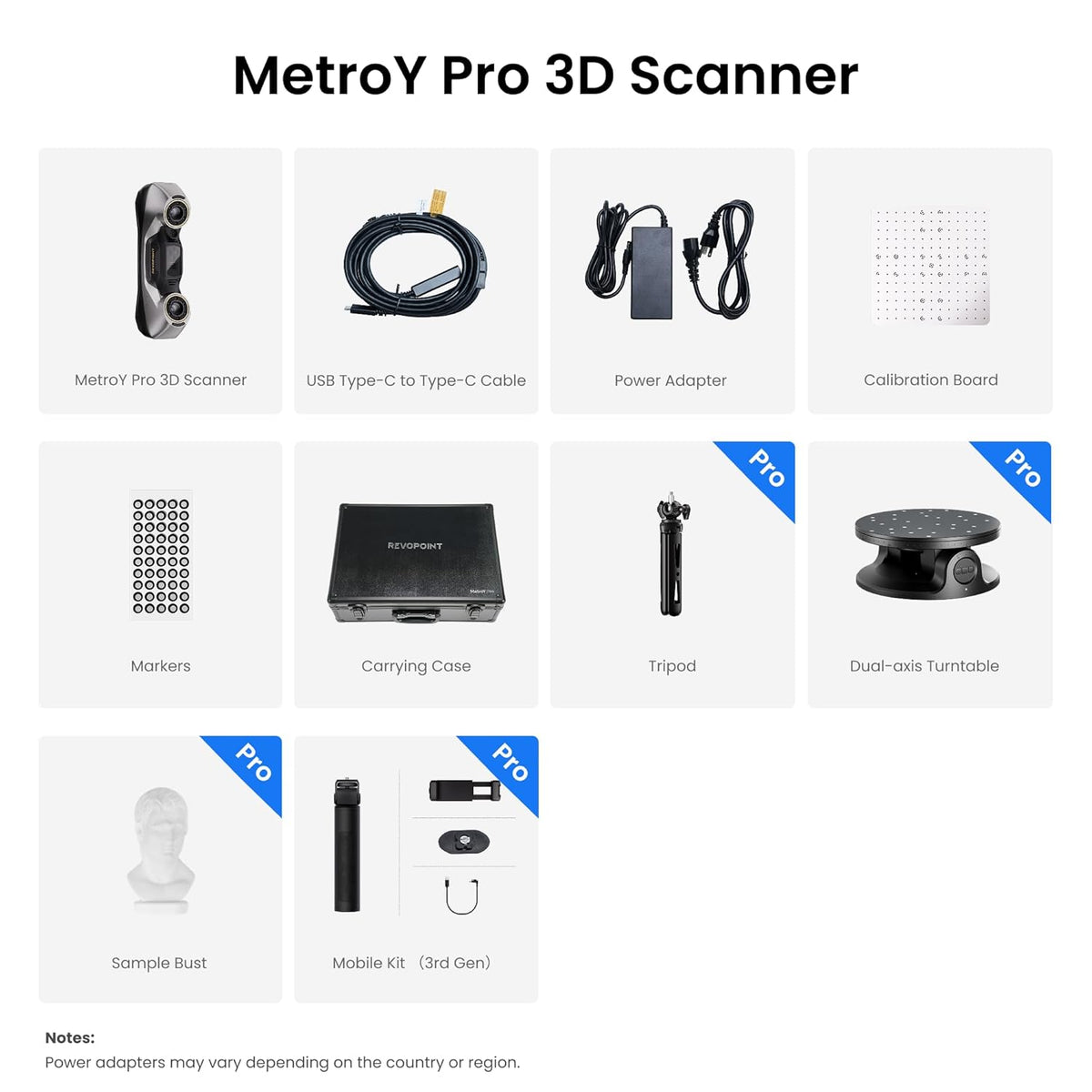

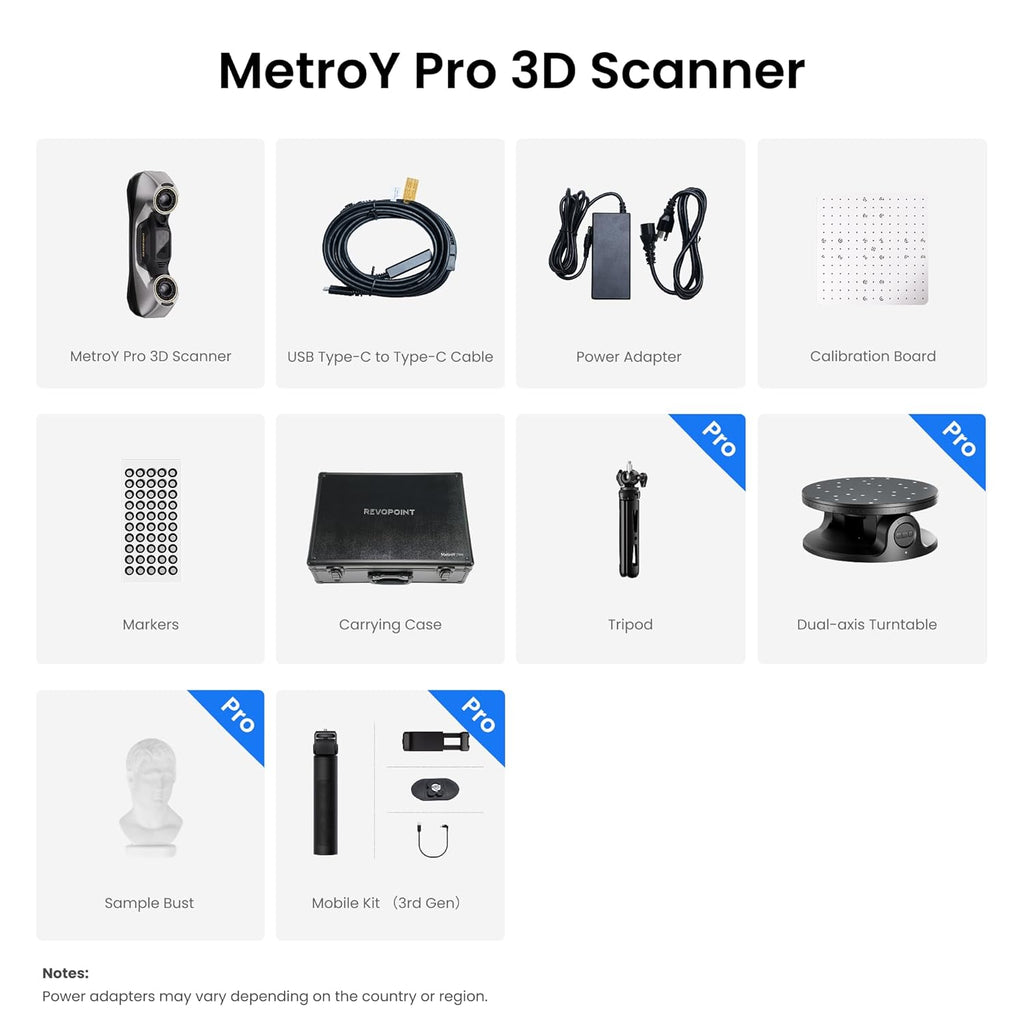

MetroY Pro:
⦁ Industrial-Grade Accuracy: Capture every detail flawlessly with MetroY's advanced blue lasers, offering precision of up to 0.01 mm, accuracy of up to 0.02 mm, and volumetric accuracy of up to 0.02 mm + 0.04 mm x L(m). It ensures accurate, reliable results for reverse engineering, metrology, and 3D printing.
⦁ Five Powerful Scanning Modes: Handle all scanning scenarios with MetroY Pro's 34 cross-lines for quickly capturing surfaces, 15 parallel lines for detailed scanning, single-line deep hole scanning, ultra-fast 62-line full-field blue structured light, and ultra-detailed auto turntable modes.
⦁ Fast Scans, No Scanning Spray Needed: Capture shiny and dark surfaces with ease, no scanning spray needed in any laser mode. Achieve high-efficiency results with scanning speeds of up to 1,700,000 points per second.
⦁ Marker-Free Scanning: Perform ultra-fast scans at up to 7 million points/second of feature-rich objects without using markers with the 62-line full-field blue light structured light mode.
⦁ One-Click Auto Turntable Scans: Make capturing even the most complex objects easy. Simply place an object on the Dual-axis Turntable and let the one-click Auto Turntable mode do the rest.
⦁ Built-in Wi-Fi 6 & Real-Time Streaming: Fast Wi-Fi 6 enables wireless scanner-to-PC connections, removing cables for more flexible scanning. Stream scans from your PC and control them live on your phone or other screens for easier movement and scan monitoring.
⦁ Professional Software: Simplify scanning, meshing, and editing with Revo Metro's intuitive tools to process and refine your scan. With one-click export, seamlessly transfer scans to Revo Measure or Revo Design for measurement and reverse engineering. The software also integrates effortlessly with Quicksurface, Geomagic Control, and other professional platforms. Windows and macOS versions are available; check the current hardware requirements for the selected model.
