Description

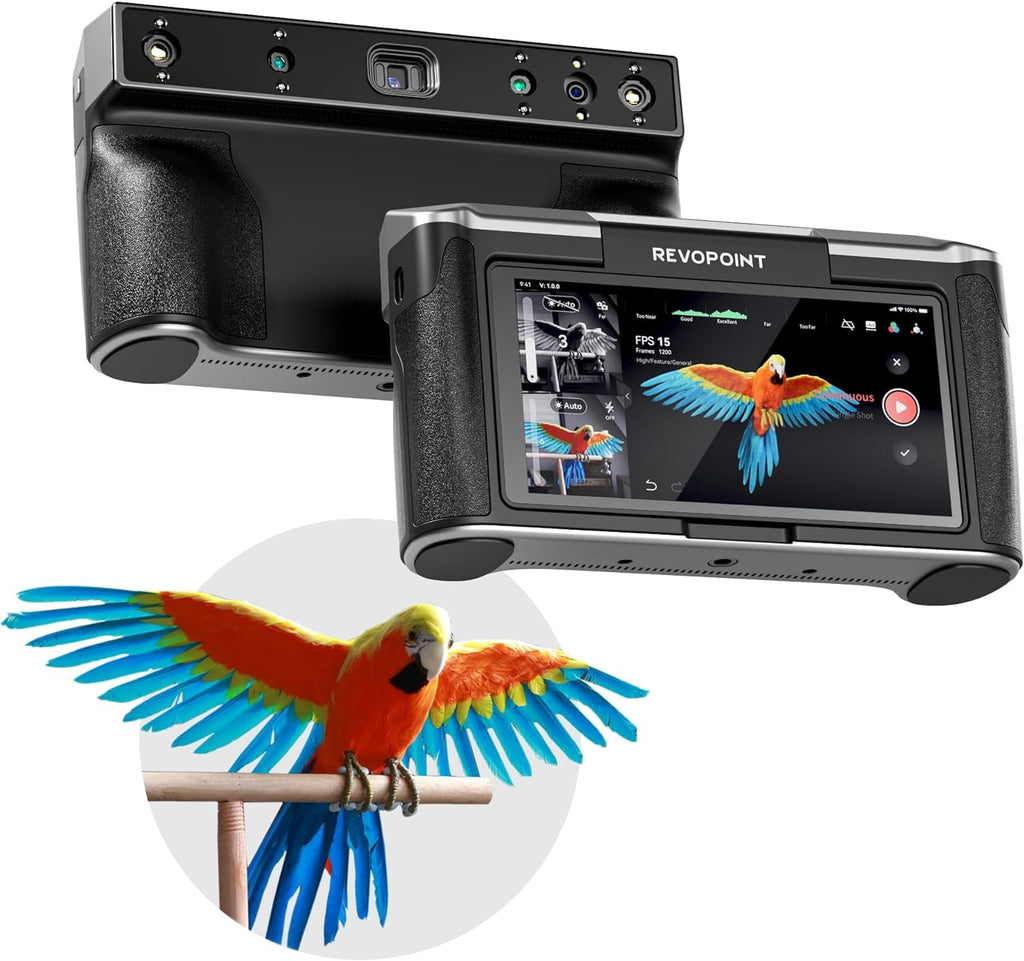

Capture and review 3D models directly on a Revopoint MIRACO scanner without a computer connected during scanning. Choose MIRACO with 16 GB RAM or MIRACO Pro with 32 GB RAM.
Key details
- Standalone scanning with an integrated 6-inch touchscreen.
- Near and Far modes for different object sizes.

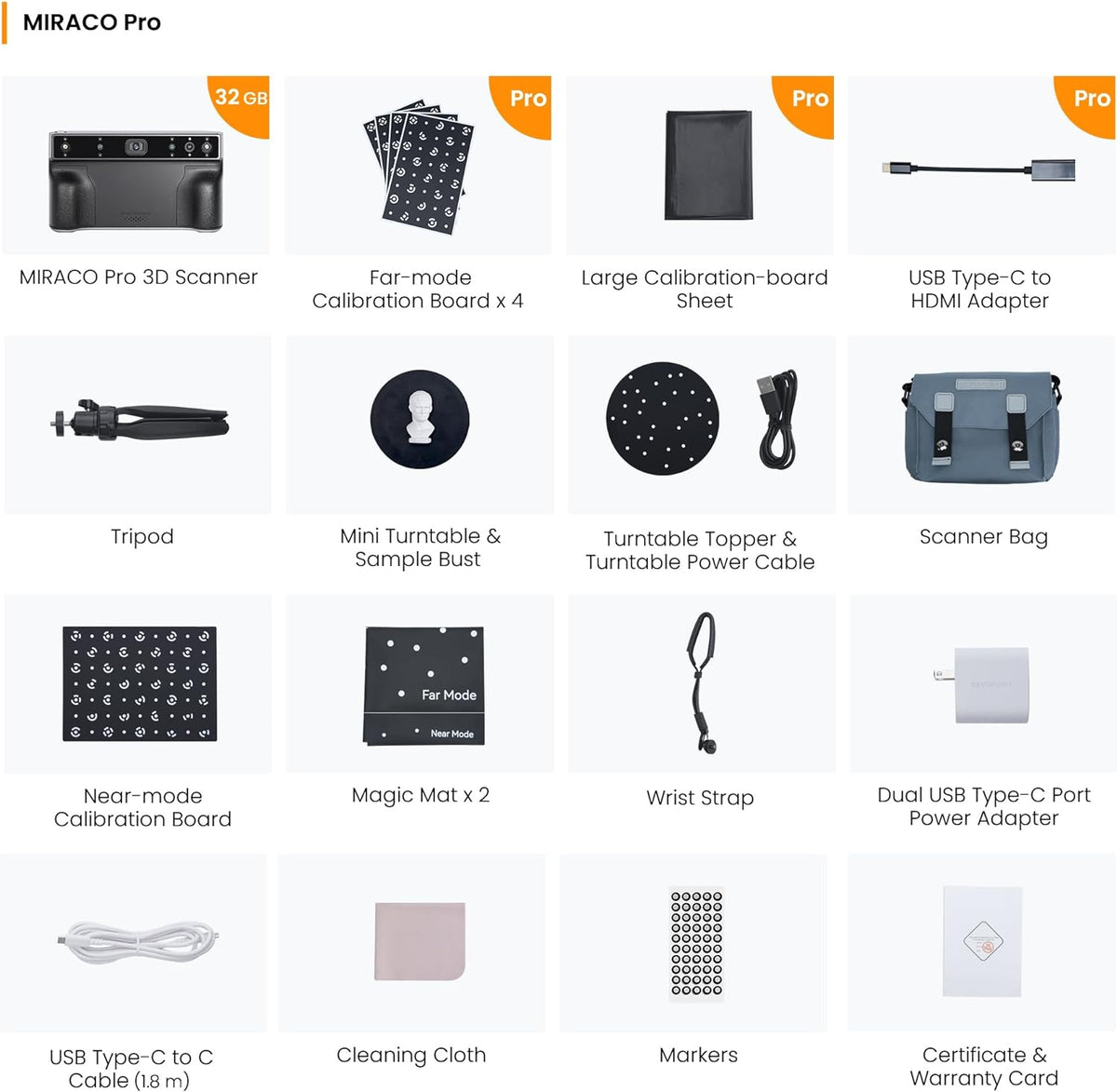

- The MIRACO Pro software bundle includes a one-year Revo Design licence; other packages do not include that paid licence.
⦁ All-in-one Scanning: 3D scan and edit your models all on one portable 3D scanner; no cables or PC are needed. Transfer your 3D models to a macOS or Windows PC in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX over MIRACO's lightning-fast Wi-Fi 6 or Type USB-C connections.
⦁ Stunning Accuracy and Colour: Create richly detailed photorealistic 3D models ready for 3D modeling with MIRACO's single-frame accuracy of up to 0.05 mm and powerful 48-megapixel RGB Camera.
⦁ Go Small, Go Big: Capture small to large objects without swapping 3D scanners using MIRACO's innovative quad-Depth Camera system. Use Near-mode to capture fine details, then switch mid-scan to Far-mode to capture large surface areas quickly.
⦁ On-the-go Scanning: Scan objects on location easily thanks to MIRACO's lightweight design (750 g) and powerful battery, providing up to 2 hours of scanning time. Maximize productivity with 50W fast charging that'll recharge MIRACO to 80% in only 35 minutes and screen mirroring, making it a breeze to check or present 3D models.

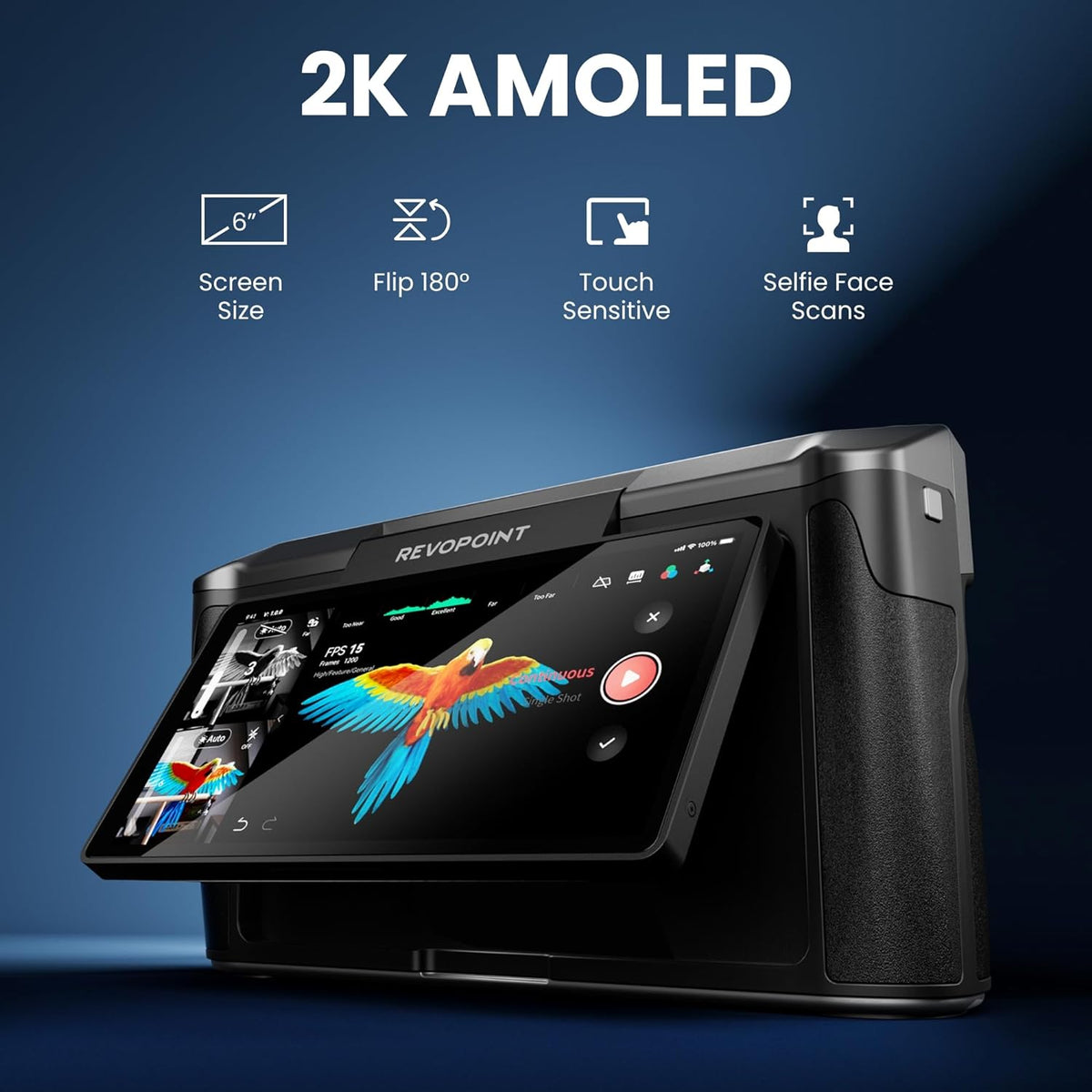

⦁ High-Resolution Display: See your scans with crystal clarity on MIRACO's 2k 6" AMOLED touchscreen. Adjust the screen angle up to 180°, enabling easy viewing from any angle. The screen can even be flipped up for selfie scans.
⦁ Powerful Hardware: Scan and edit everything on MIRACO using its powerful 8-core 2.4GHz processor, 16 GB RAM for up to 5,000 captured frames, and a 256 GB hard drive to store all your projects.
⦁ Two Capture Modes: Single-shot mode makes it a snap to capture feature-rich or featureless objects with precise tracking, high accuracy, and minimal point cloud overlap. Create 3D models fast using Continuous mode's fast up to 15 fps scanning speeds.
⦁ Professional and Efficient Revo Design: Revo Design, powered by Quicksurface software, streamlines the scan-to-CAD process. Its efficient and powerful features allow you to quickly convert scanned data in STL, OBJ, PLY, and other formats into ready-to-use CAD models. Effortlessly manage 3D data conversion for product design, reverse engineering, and more, enhancing overall work efficiency. Check the current Windows or macOS hardware requirements for your scanner and software version.
